Gillmach Wire Feeder

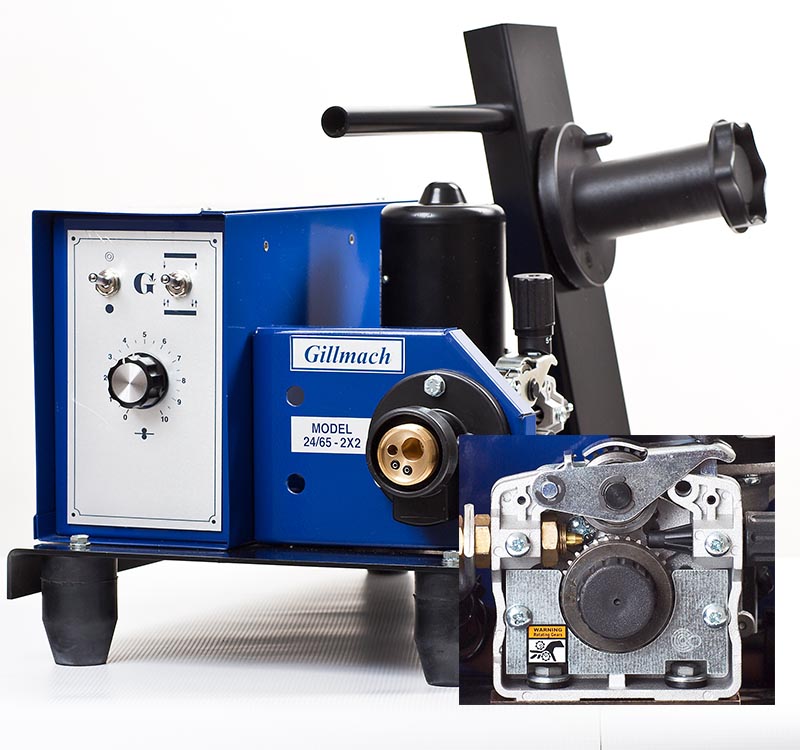

Gillmach Wire Feeder - Model 24/65 2X2


The Gillmach wire feeders are compatible with all MIG welding power packs. So now, if your wire feeder breaks and is not repairable, there's no need to replace the entire machine.

Start Work With Us

Specifications


  • Supply Voltage: 110 volts AC or 42 Volts DC
  • Trigger Voltage: 24 Volts DC (isolated)
  • Motor Voltage: 24 Volts DC
  • Wire Drive System: Geared two wheel drive
  • Trigger Control: Two and Four Stroke (standard and trigger lock)
  • Wire Diameter Range: 0.8mm to 3.2mm depending on drive roller (all sizes available)
  • Motor Drive System: Electronic closed loop maintaining constant wire speed irrespective of mains voltage fluctuations.



Print Page

Features:

  • Gillmach wire feeders are a multi-voltage unit and can operate from any welding power source. The operating voltages are 100 volt AC - 46 volt or 24 volt DC.
  • The contractor operation of the power source is operated via a normally open set of relay contacts in the wire feeder.
  • Speed control is operated from a control knob of the front panel. The speed control is a pulse width modulator offering a constant wire speed irrespective of mains voltage fluctuation.
  • Slope control is the rate at which the wire speed increases to the value set by the speed control knob. Thhis is factory set for normal mild steel welding but can be adjusted to obtain optimum arc starting for aluminium welding. Adjustment is via a potentiometer om the motor control pc board marked "slope".
  • Burn back time is preset in the factory but can be adjusted via a potentiometer located on the trigger lock pc board.

Optional Extras:

  • Extended Control Cable
  • Spool Cover
  • Castor Wheels
  • Swivel Base Water
  • Cooling Quick Couplings
